Product Description

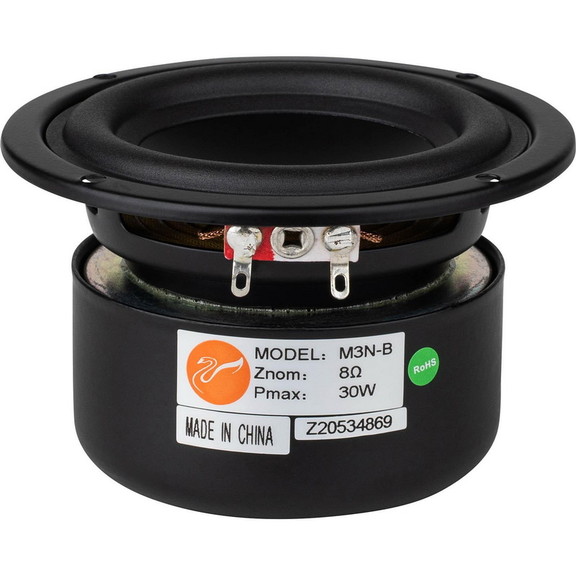

The HiVi M3N-B 3" full-range speaker features a black magnesium/aluminum alloy cone， stamped frame， and hi-temp voice coil and bobbin.
HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Full-Range Driver
A shielded magnet structure allows the HiVi M3N-B 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a black magnesium/aluminum alloy cone， stamped frame， and hi-temp voice coil and bobbin.
HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Full-Range Driver
A shielded magnet structure allows the HiVi M3N-B 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a black magnesium/aluminum alloy cone， stamped frame， and hi-temp voice coil and bobbin.
Product Details | |
|---|---|
| Brand | HiVi |
| Model | M3N-B |
| Part Number | 297-482 |
| UPC | 848864070612 |
| Unit of Measure | Each |
| Weight | 1.25 |
Product Specifications | |
|---|---|
| Nominal Diameter | 3" |
| Power Handling (RMS) | 15 Watts |
| Power Handling (MAX) | 30 Watts |
| Impedance | 8Ω |
| Sensitivity | 82dB 2.83V/1m |
| Voice Coil Diameter | 0.78" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 91Hz |
| DC Resistance (Re) | 6.5Ω |
| Mechanical Q (Qms) | 3.57 |
| Electromagnetic Q (Qes) | 1.03 |
| Total Q (Qts) | 0.8 |
| Compliance Equivalent Volume (Vas) | 0.05ft³ |
| Mechanical Compliance of Suspension (Cms) | 1172mm/N |
| BL Product (BL) | 3T·m |
| Diaphragm Mass Inc. Airload (Mms) | 2.6g |
| Maximum Linear Excursion (Xmax) | 3mm |
Materials of Construction | |
|---|---|
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Kapton® / Polyimide |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Baffle Cutout Diameter | 2.80" |
| Depth | 2.08" |
| # Mounting Holes | 4 |
